Overview.

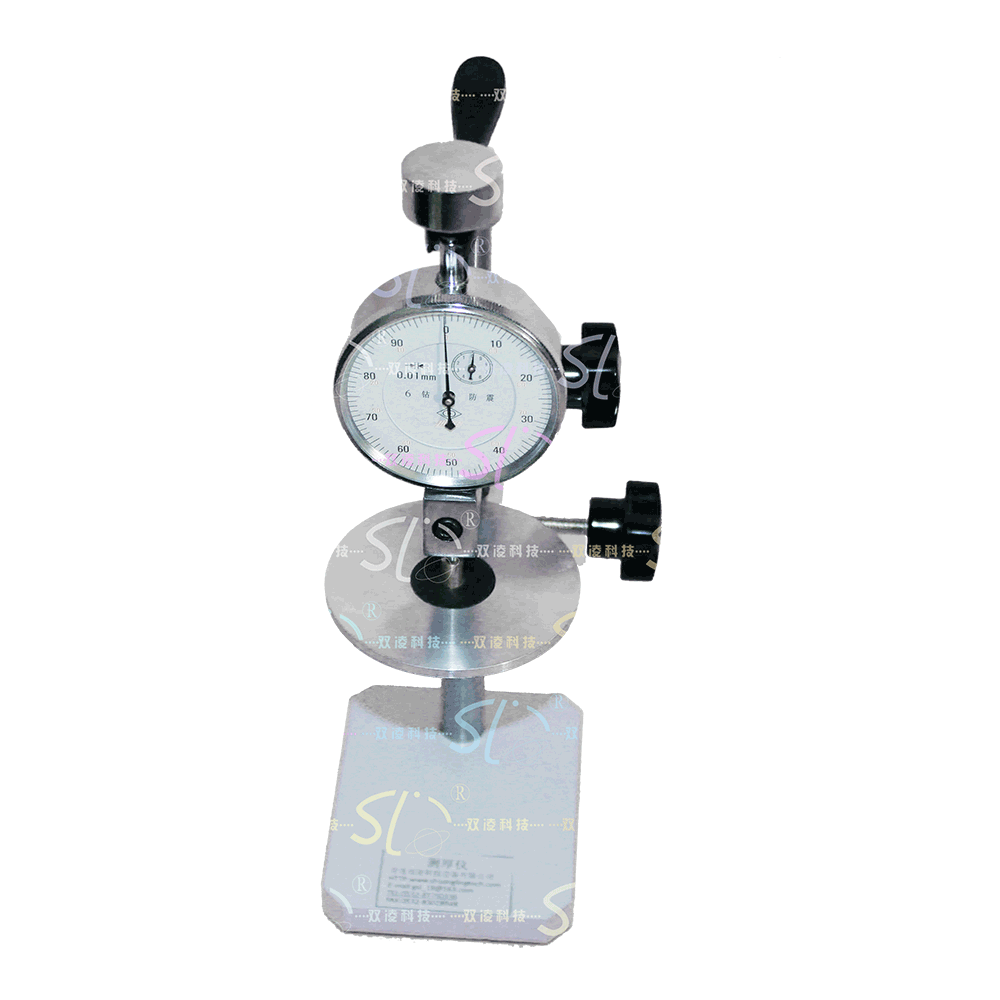

CH-01 Thickness Gauge - Benchtop pointer is used to measure the thickness of specimens and products of vulcanized rubber, plastics and other materials. Benchtop and portable two kinds. In line with GB527 "general requirements for physical test methods of vulcanized rubber" GB5723 "vulcanized rubber test specimens and products size measurement of the general provisions of" and HG2041 "rubber thickness gauge technical conditions" and other requirements, CH-01 thickness gauge - desktop pointer is beautiful and easy to carry, portable thickness gauge.
Technical Parameters.
|
Measurement range |
0-10mm |
| indexing value |
0.01mm |
|
upper measuring foot diameter |
6±0.05mm |
| stress |
22±5Kpa |
|
Required mass |
63±7g |
| Maximum travel of table lifting and lowering |
40mm (tabletop) |
|
Table O.D. |
70mm (desktop) |
| Probe Diameter |
6mm (tabletop) |
|
Block gauge specification (thickness) |
5, 10, 15, 20mm (tabletop) |
