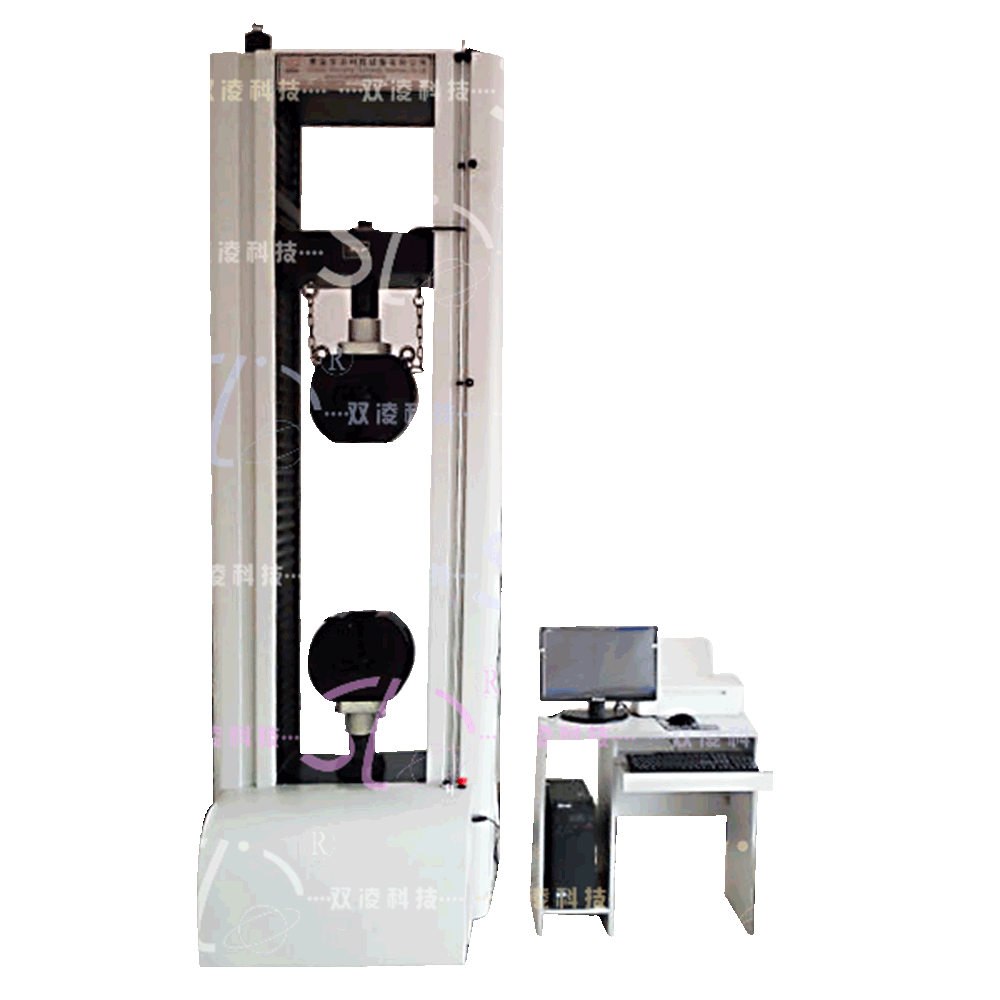

DL-20KN computer-controlled tensile testing machine

Overview.

DL-20KN computer-controlled tensile testing machine is a high-precision load testing machine, equipped with liquid crystal display, using microprocessor control and integrated, digital measurement and control technology, and can be processed and printed data.DL-20KN computer-controlled tensile testing machine is suitable for conveyor belt whole core dumbbell-like pull-off and other performance testing. Equipped with the corresponding tooling, it can automatically obtain the maximum test force value, tensile strength, elongation stress, modulus of elasticity, constant elongation stress, constant stress elongation and other parameters. The testing machine is powerful, accurate in data processing, simple in operation and convenient in use and maintenance. It meets the test requirements of GB/T 528-2009 "Determination of Tensile Stress-Strain Properties of Vulcanized Rubber or Thermoplastic Rubber" and GB/T 529-2008 "Determination of Tearing Strength of Vulcanized Rubber or Thermoplastic Rubber" standards.

Technical parameters:

model number

DL-20KN
Maximum load of the tester

20kN

Load Cell Capacity

20kN (optional capacity sensor up to 20kN)
Precision grade of the whole machine

0.5 level

Force Measurement Accuracy

±0.005
Effective force range

1%-100%

Speed measurement range

1-200mm/min stepless speed regulation (or customized)
Tester resolution

1/100000

Displacement measurement accuracy

0.002mm
Effective test stroke

600mm

Dimensions of mainframe (L×W×H)

700×830×2250mm
electrical machinery

Three-phase 380V, 50HZ

Main body weight

Approx. 780kg
