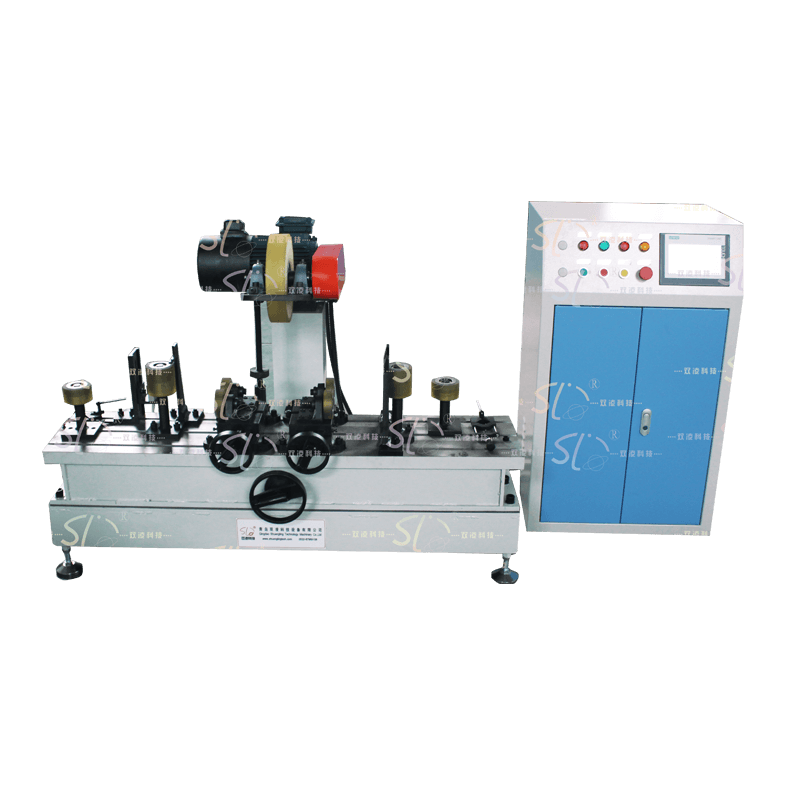

MA601/Z Roller Rotation Resistance Test Bench (Computerized Control)

Overview.

MA601/Z Roller Rotation Resistance Test Bench (Computerized Control) is mainly used for the test of rotation resistance of rollers to test the size of rotation resistance of rollers. This product is in line with MT821-2006 "coal mine belt conveyor with rollers Technical Requirements" and GB/T10595-2009 "belt conveyor" standard use requirements. This machine is suitable for scientific research institutions, conveyor belt machine manufacturers, quality inspection institutes and other units.

Technical Parameters.

Measuring range of roll diameter

Ф76-245mm
Measuring range of roll length

≤1000mm

Number of rollers tested

1 root
Power supply

380V 50HZ

sizes

1360*818*940mm
weights

400 kg
