Overview:

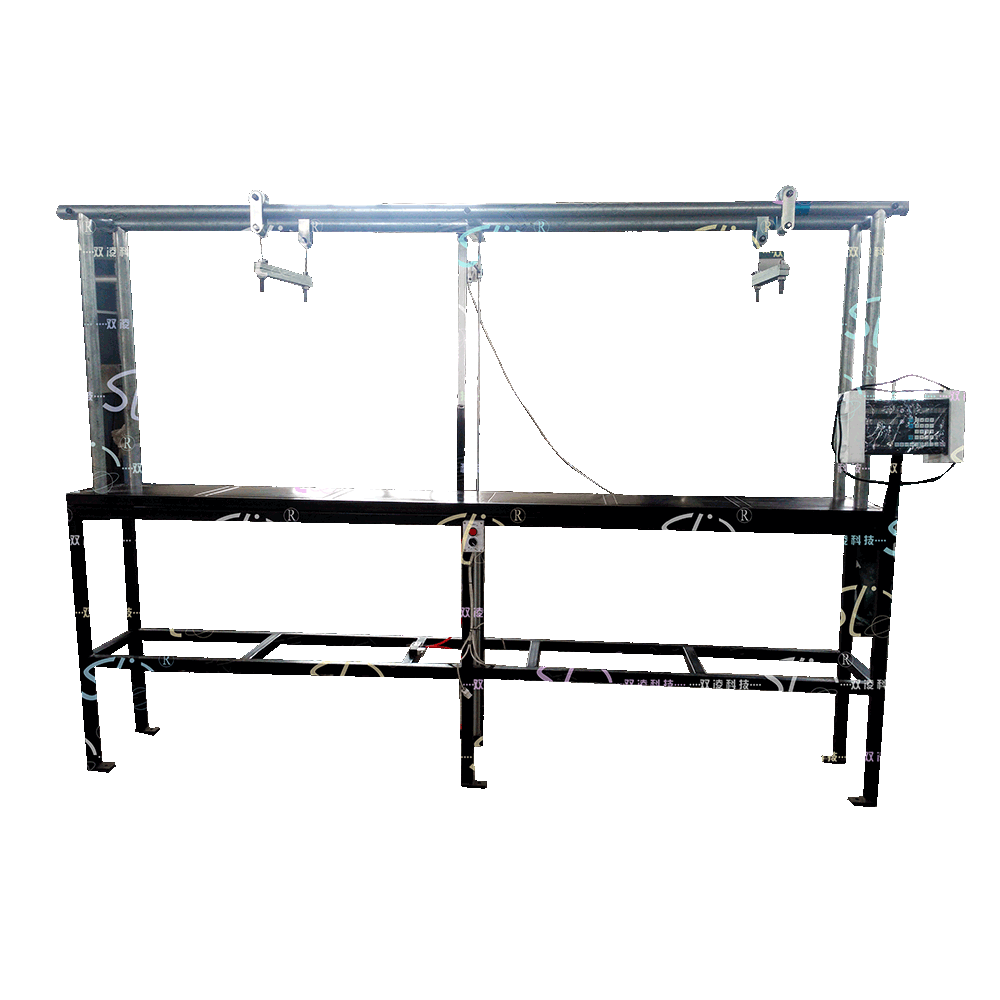

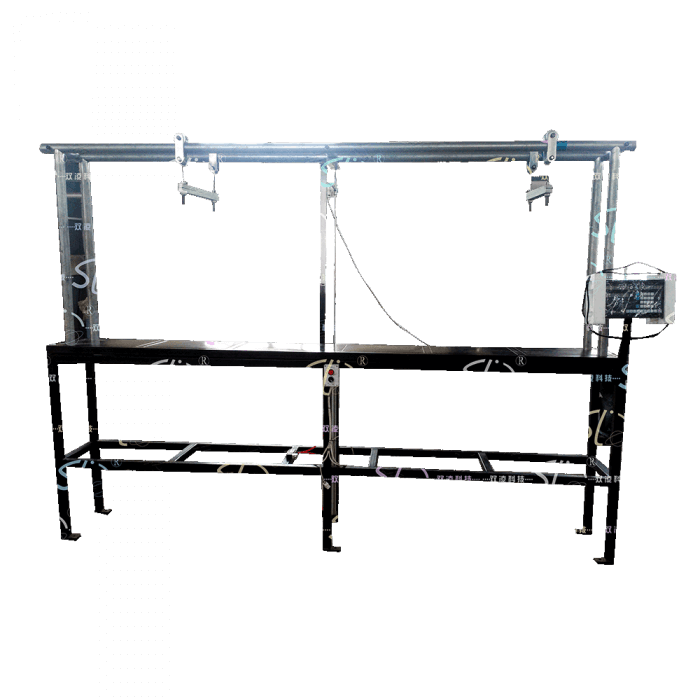

SC-1A conveyor belt transverse flexibility and grooving test machine is the transverse flexibility and grooving test equipment of conveyor belt in free draping mode.SC-1A conveyor belt transverse flexibility and grooving test machine has automatic vertical tracking and automatic reading function with convenient and intuitive operation, wide range of application and so on, which is in line with the use of GB/T7983-2005/ISO703:2007 standard. It meets the requirements of GB/T7983-2005/ISO703:2007 standard.
Technical parameters:
|
Supply Voltage |
AC220V±10% 50Hz±5% |
|
Maximum power consumption |
320W |
|
Specimen range specification |
(Length) 600-2600 (mm) (Width) 50-150 (mm) (Thickness) 6-35 (mm) |
|
Test Accuracy |
±1mm |
|
Equipment Shape |
(L)2900mm x (W)400mm x (H)1960mm |
|
weights |
200Kg |
