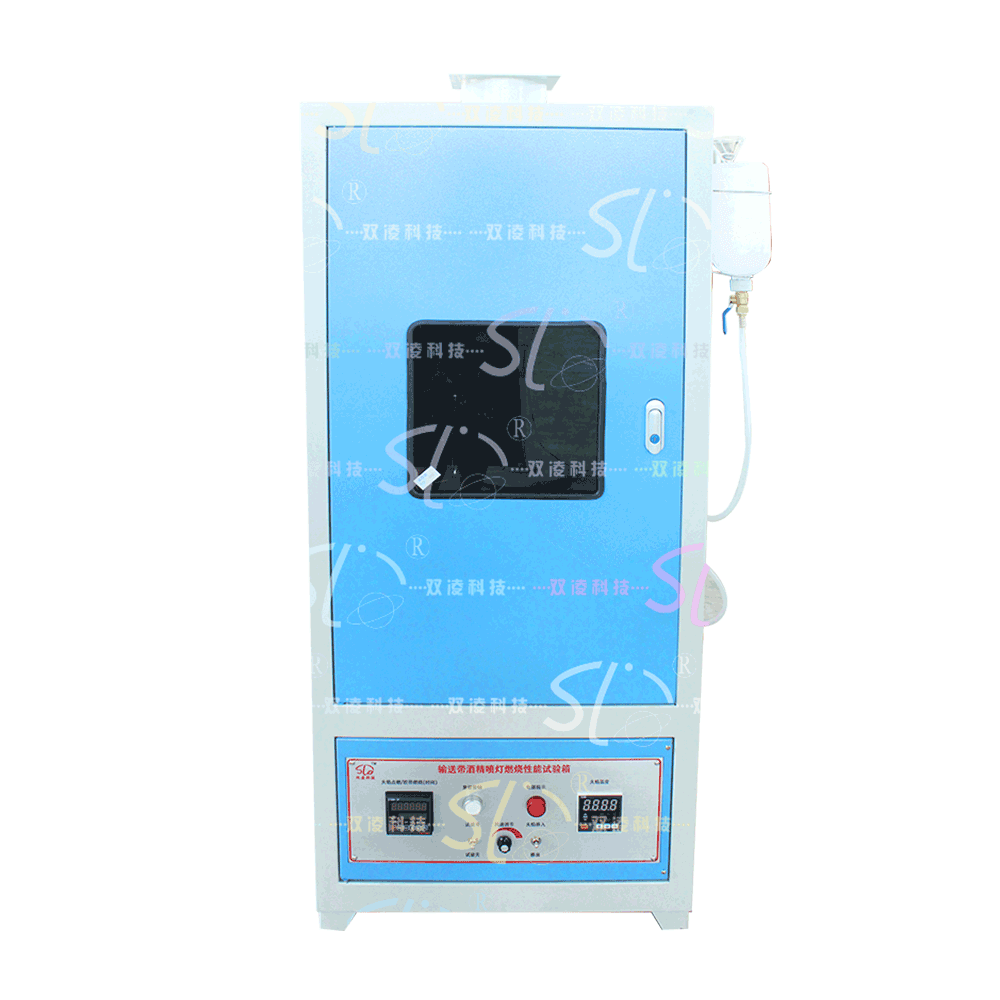

SJPR-01B Alcohol Torch Flame Retardant Performance Test Chamber for Wind Tubing Fabric Rubber Ring

Overview:

SJPR-01B Alcohol Blowtorch Flame Retardant Properties Test Chamber is suitable for scientific research units and factories to do combustion test and flame-retardant evaluation and analysis of various types of flame-retardant and flame-retardant conveyor belts under the laboratory conditions, which is in line with the requirements of GB/T3685-1996 "Conveyor Belt Alcohol Blowt Combustion Properties Specification and Test Methods". The product meets the requirements of GB/T3685-1996 "Specification and Test Method for Flame Performance of Conveyor Belt by Alcohol Blast Lamp". It is capable of testing various types of flame-retardant conveyor belts, and is in full compliance with the requirements of MT113-1995 standard for flame-retardant and flame-retardant products.

Technical parameters:

standards-compliant

MT113-1995 General Test Methods and Judgment Specifications for Flame Retardant and Antistatic Properties of Polymer Products Used in Underground Coal Mines

Flame height

150-180 (mm) adjustable

Flow Consumption Reagents

2.55±0.15mL/min

reagents

95% ethanol and 5% (V/V) methanol mixture

Overall dimensions

660(W)*660(Th)*1130(H)mm

Interior Dimensions

660(W)*660(Th)*960(H)mm

Alcohol blowtorch angle

Vertical/45°

Flame temperature at 50mm 960°C + 60°C adjustable 900 (L) x 450 (W) x 600 (H)

Ingredients:

  • Reagents, hoses and flow valves, 10 ml measuring tubes and 1000 ml reagent containers, alcohol blowtorch
  • Chamber and specimen holder
