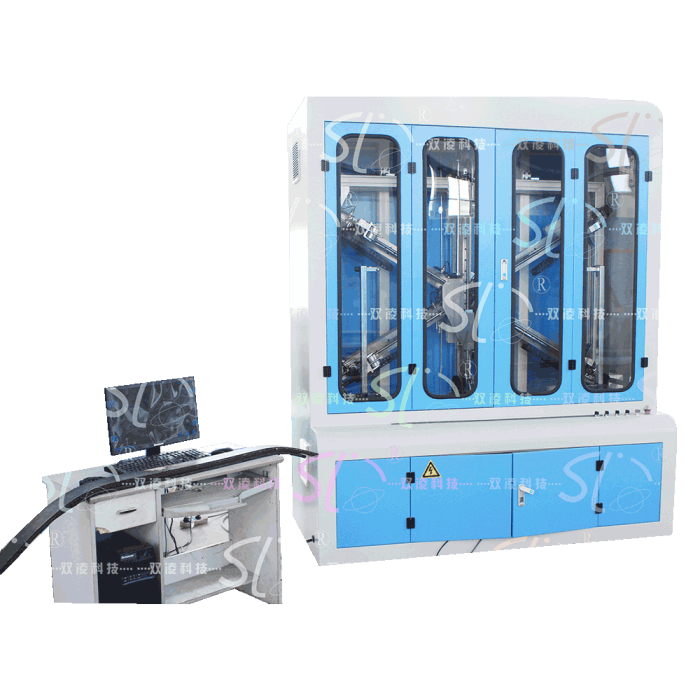

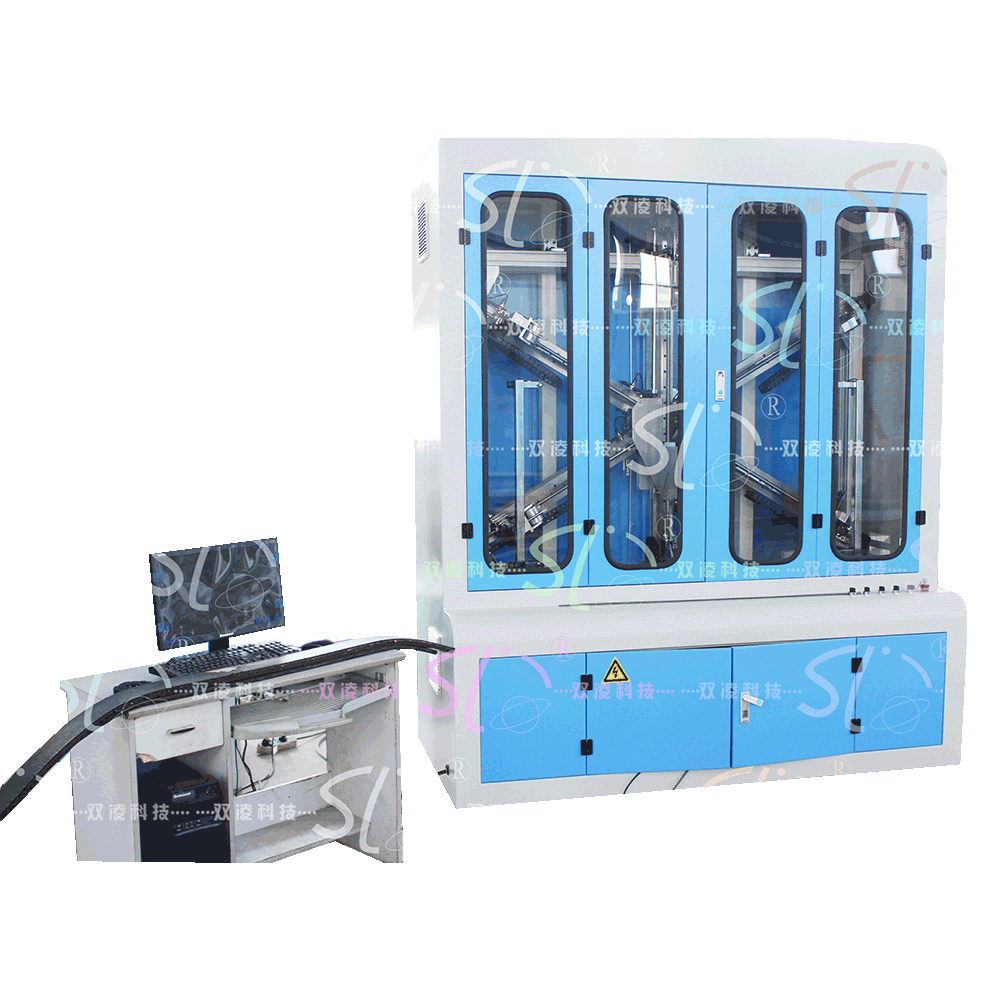

SLGZ-860A Comprehensive Testing Machine for Tubular Conveyor Belt
summarize::
SLGZ-860A Tubular Conveyor Belt Comprehensive Testing Machine is based on HG/T4225-2011 "fabric core tubular conveyor belt" and HG/T4224-2011 "steel wire rope core tubular conveyor belt" standard appendix A (normative appendix) "tubular conveyor belt transverse rigidity determination method", combined with the application of the actual situation in the process of design and production. The testing machine is in line with HG/T4225-2011 "fabric core tubular conveyor belt" and HG/T4224-2011 "steel wire rope core tubular conveyor belt" standard appendix A (normative appendix) "tubular conveyor belt transverse rigidity determination method" of the test method, at the same time, SLGZ-860A type tubular conveyor belt comprehensive test machine can be used for the simulation of fatigue testing of tubular conveyor belts. It can measure the transverse rigidity value and deflection value of tubular conveyor belt. The whole test process is controlled by computer and data acquisition. It has test curve, data report saving and printing function, inner diameter setting, belt thickness setting, automatic calculation of outer diameter function, force setting, displacement setting, actual force tracking display, displacement data display, variable diameter ratio curve display, saving and printing function, and can be designed to generate the test report.
