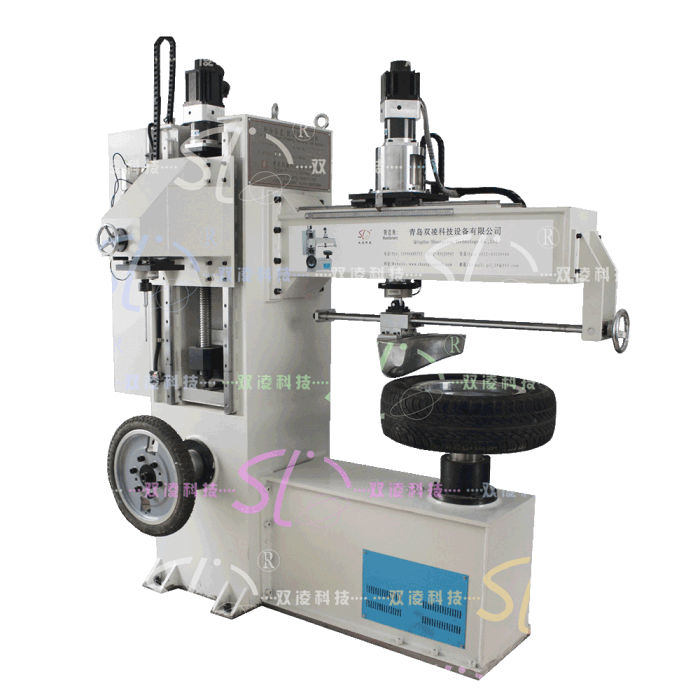

SLLQ-50 Tire Strength/De-rimming Resistance Tester

Overview:

According to GB/T4502-2009 and GB/T13203-2007 standards, combined with the precision and repeatability requirements of the test equipment, in line with the simple operation, compact equipment, long service life, continuous operation of the design principles, SLLQ-50 tire strength/de-rimming resistance testing machine using a combination of electric and mechanical transmission, steel skeleton structure, a variety of rims according to the different specimens can be replaced arbitrarily. All kinds of rims can be replaced arbitrarily according to different specimens. Electricity consists of primary instrumentation, drive distribution components, actuators, computers, PLC, printers and other components, through the corresponding combination of the above devices, to complete the data collection, preservation. The whole test equipment is humanized design. The product - tire strength / off-ring resistance test machine in line with GB/T4502 standard 5.1 off-ring resistance test and 5.2 strength test, GB/T13203-2007 standard 5.1 strength test test test methods and requirements.

Technical parameters:

1 Motorcycle tire strength test:

Equipment structure

 Vertical Rack Indenter return speed 50～500mm/min (Settable)
Tire Diameter 300-800mm Load Measurement Accuracy

±1 per cent

Maximum tire section width

 <250mm displacement accuracy ±1%
Nominal diameter of rims for tires 8"~21 Indenter Diameter

8mm±0.6mm

Loading method

 Mechanical servo loading electrical machinery Delta Servo Motor 1.5Kw
Strength test load Max.20KN. Equipment Size

Approx. 1900mm L*700mm W*2300mm H

Test loading speed

 50±2.5mm/min (can be set, accuracy can reach ±0.1mm/min) Gross weight of equipment

Approximately 1.7 tons

2 Strength and de-rimming test for car tires:

Equipment structure

 Vertical Rack Indenter return speed 50～500mm/min (Settable)
Tire Diameter 450-1000mm Load Measurement Accuracy

±1 per cent

Maximum tire section width

 <400mm displacement accuracy ±1%
Nominal diameter of rims for tires 10"-28 Indenter Diameter

19mm±0.5mm

Loading method

 Mechanical servo loading electrical machinery Total servo motor power 2.25Kw
Strength test load Max.50KN, Load of resistance to de-ringing: Max.20KN. Equipment Size

Approx. 1900mm L*700mm W*2300mm H

Test loading speed

 50±2.5mm/min (can be set, accuracy can reach ±0.1mm/min) Gross weight of equipment

Approximately 1.7 tons
