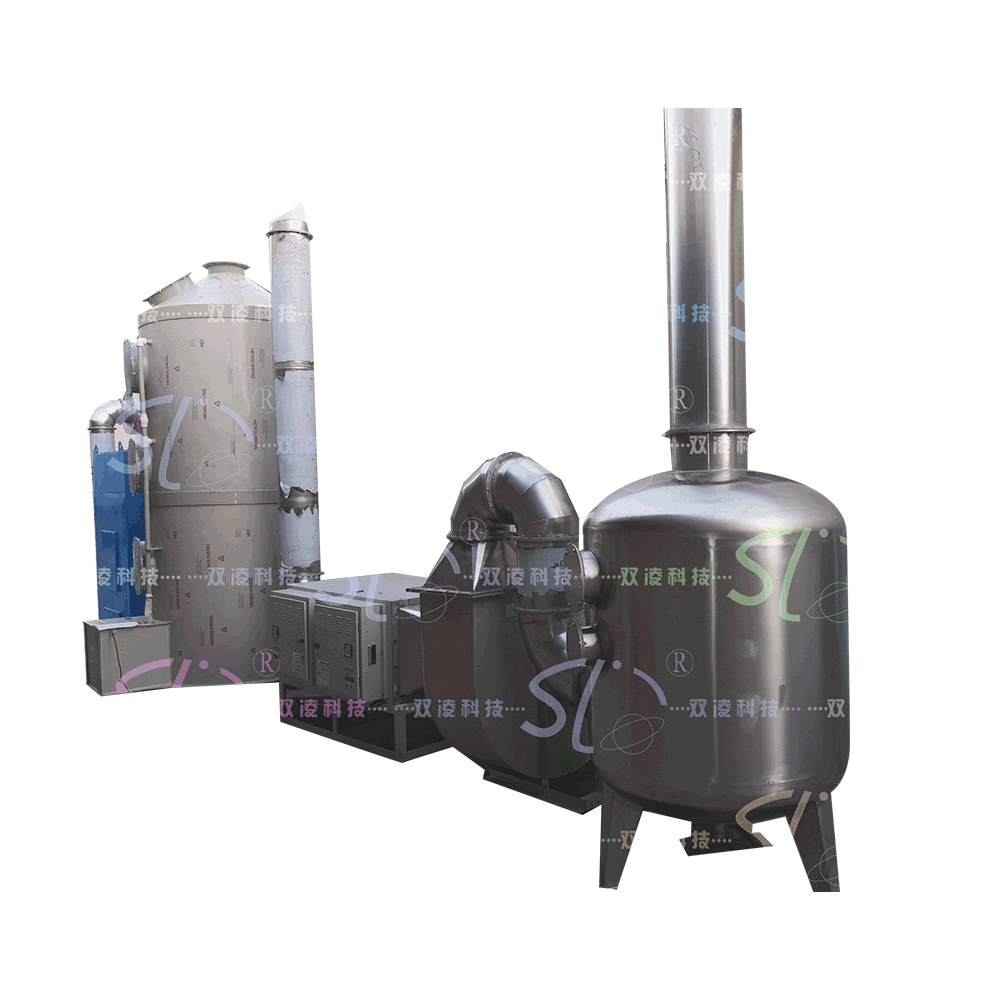

SLRYC-03/8000 Smoke Treatment Unit

Overview:

SLRYC-03/8000 smoke treatment device can be aimed at users to realize the purification treatment of smoke emission during combustion. After purification treatment should meet the smoke emission standard GB16297-96 "Comprehensive Emission Standards for Air Pollutants" secondary standards. The product meets the test and use requirements of MT450 standard 6.1.3 and EN 12881-1:2014 standard and other related standards.

Composition and technical parameters::

  • Product Composition
  • Frame: Angle steel welding, plastic spraying anti-corrosion treatment.
  • Piping, liner, fume hood: 316 stainless steel material, high temperature resistant inner wall treatment
  • Inner liner: 1.5mm Fume hood: 2mm
  • Butterfly valve: anti-corrosion stainless steel butterfly valve
  • Smoke and dust removal treatment system
  • Neutral treatment system for smoke filtration
  • FUV Physical Processing System
  • Physical purification and treatment system to ensure deep treatment of emissions.
  • converter
  • Electrical control system 1 set
  • Process flow: the specific process flow is: smoke collection → smoke dedusting treatment → smoke filtering neutral treatment → FUV physical treatment → physical purification treatment → smoke emission
  • Smoke emission: The treated exhaust gas meets the following emission requirements
  • Rubber tire exhaust emissions implementation standard exhaust emissions implementation of GB16297-96 "Comprehensive Emission Standards for Air Pollutants" secondary standards, see the following table:

    sports event

    sampling height

    collection volume

    Content analysis

    Minimum emission standards

    particulate matter

    2m

    m3

    92.4mg

    18mg

    Total non-methane hydrocarbons

    2m

    m3

    89.6mg

    18mg

    Toluene and xylene

    2m

    m3

    63.5mg

    30mg

    spandex

    2m

    m3

    55.2mg

    30mg

    The People's Republic of China Comprehensive Emission Standards for Air Pollutants (GB16297-19960);

    Ambient air quality standards (GB13223-1996);

    Design Code for Noise Control in Industrial Enterprises (GB87-85);

    Electrical installation works and acceptance regulations (GBJ232-82);

    Law of the People's Republic of China on Environmental Protection (1989.12);

    Limits of Occupational Exposure to Hazardous Factors in the Workplace (GBZ2-2002);

    Other relevant design codes and design manuals.

Rubber tire exhaust emissions implementation standard exhaust emissions implementation of GB16297-96 "Comprehensive Emission Standards for Air Pollutants" secondary standards, see the following table:

pollutants

Maximum allowable emission concentration (mg/m3)

Maximum permissible emission rate kg/h

Unorganized emission monitoring concentration limit exhaust pipe height (m)

Concentration at monitoring point (mg/m3)

(military) rank

soot

Highest point of concentration outside the perimeter

18

15

0.51

category B

invisible to the naked eye

20

0.85

30

3.4

General particulate matter

Highest point of concentration outside the perimeter

20

15

3.5

invisible to the naked eye

20/30

1.0/5.9

30

23

Total non-methane hydrocarbons

Highest point of concentration outside the perimeter

120

15

10

invisible to the naked eye

20

4.0

25

40
