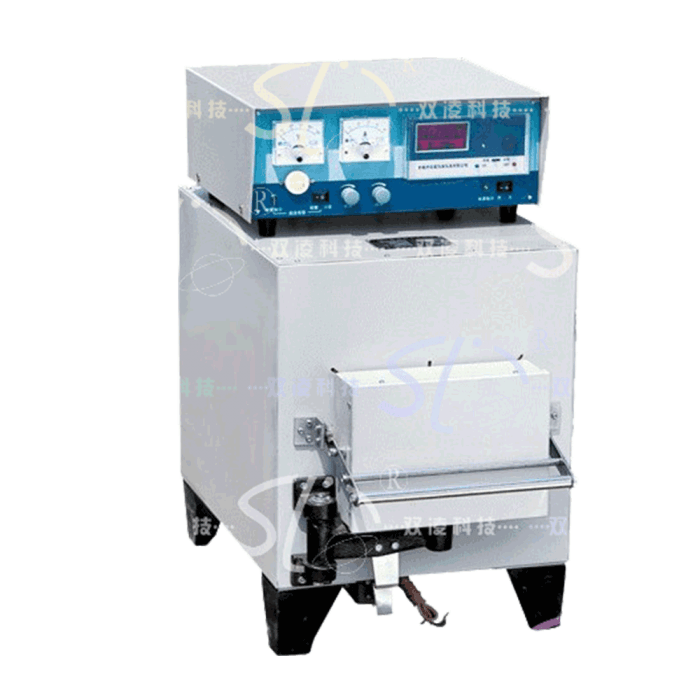

SLXD-2.5-10 high-temperature electric furnace - muffle furnace

Overview.

The company manufactured a series of resistance furnace is the transformation and upgrading of old products, equipped with the first registered domestic production of novel automated instrumentation XMT series of temperature controllers and the corresponding thermocouples, so that the resistance of the temperature control accuracy, more automated, widely used in various types of laboratories, industrial and mining enterprises, scientific research units for the determination of the vein plate and the general quenching of small pieces of quenching, annealing, tempering and other heat treatment operations.

Technical Parameters.

Table 1    SLJX900℃ box type

Main parameters

SLJX-2-9A

 SLJX-3-9A SLJX-4-9A

SLJX-5-9A

Rated power (kW)

 2 3 4 12
Rated voltage (volts) 220 220 220

380/220

Temperature control range of the thermostat (degrees)

 Room temperature -1200 Room temperature -1200 Room temperature -1200 Room temperature -1200
Allowable furnace temperature (degrees) 950 950 950

950

temperature measuring element

 Inconel-NiSi Thermocouples Inconel-NiSi Thermocouples Inconel-NiSi Thermocouples Inconel-NiSi Thermocouples
heating element Iron Chromium Aluminum Alloy Wire Iron Chromium Aluminum Alloy Wire Iron Chromium Aluminum Alloy Wire

Iron Chromium Aluminum Alloy Wire

Furnace chamber size Length X Width X Height (mm)

 200X120X80 300X200X120 300X200X120

500X300X200

Table 2    SLXD1000℃ box type

Main parameters

 SLXD-2.5-10A SLXD-4-10A SLXD-8-10A SLXD-12-10A
Rated power (kW) 2.5 4 8

12

Rated voltage (volts)

 220 220 380/220 380/220
Temperature control range of the thermostat (degrees) Room temperature -1200 Room temperature -1200 Room temperature -1200

Room temperature -1200

Allowable furnace temperature (degrees)

 1050 1050 1050 1050
temperature measuring element Inconel-NiSi Thermocouples Inconel-NiSi Thermocouples Inconel-NiSi Thermocouples

Inconel-NiSi Thermocouples

heating element

 Iron Chromium Aluminum Alloy Wire Iron Chromium Aluminum Alloy Wire Iron Chromium Aluminum Alloy Wire Iron Chromium Aluminum Alloy Wire
Furnace size Length X Width X Height (mm) 200X120X80 300X200X120

400X250X160

500X300X200

Table 3    SLXD1200℃ box type

Main parameters

 SLXD-2.5-12A SLXD-5-12A SLXD-10-12A SLXD-12-10A
Rated power (kW) 2.5 5 10

12

Rated voltage (volts)

 220 220 380/220 380/220
Temperature control range of the thermostat (degrees) Room temperature -1200

Room temperature -1200

Room temperature -1200

Room temperature -1200

Allowable furnace temperature (degrees)

 1200 1200 1200 1200

temperature measuring element

Inconel-NiSi Thermocouples

 Inconel-NiSi Thermocouples Inconel-NiSi Thermocouples

Inconel-NiSi Thermocouples

heating element

Iron Chromium Aluminum Alloy Wire

Iron Chromium Aluminum Alloy Wire

Iron Chromium Aluminum Alloy Wire

Iron Chromium Aluminum Alloy Wire

Furnace chamber size Length X Width X Height (mm)

 200X120X80 300X200X120 400X250X160

500X300X200

Table 4    SRJX1300℃ box type

Main parameters

 SLJX-4-13A SLJX-6-13A SLJX-8-13A SLJX-10-13A
Rated power (kW) 4 6 8

10

Rated voltage (volts)

 220 220 380/220 380/220
Temperature control range of the thermostat (degrees) Room temperature -1350 Room temperature -1350 Room temperature -1350

Room temperature -1350

Allowable furnace temperature (degrees)

 1350 1350 1350 1350
temperature measuring element Inconel-NiSi Thermocouples

Inconel-NiSi Thermocouples

Inconel-NiSi Thermocouples

Inconel-NiSi Thermocouples

heating element

 Iron Chromium Aluminum Alloy Wire Iron Chromium Aluminum Alloy Wire Iron Chromium Aluminum Alloy Wire Iron Chromium Aluminum Alloy Wire
Furnace chamber size Length X Width X Height (mm) 250X150X100 250X150X100 500X200X180

500X300X200

Table 5    SLJX1600℃ box type

 Main parameters

 SLJX-6-16A SLJX-8-16A SLJX-10-16A SLJX-10-13A
Rated power (kW) 6 8 10

12

Rated voltage (volts)

 220 380/220 380/220 380/220
Temperature control range of the thermostat (degrees) Room temperature -1650 Room temperature -1650 Room temperature -1650

Room temperature -1650

Allowable furnace temperature (degrees)

 1600 1600 1600 1600
temperature measuring element Inconel-NiSi Thermocouples Inconel-NiSi Thermocouples Inconel-NiSi Thermocouples

Inconel-NiSi Thermocouples

heating element

 Iron Chromium Aluminum Alloy Wire Iron Chromium Aluminum Alloy Wire Iron Chromium Aluminum Alloy Wire Iron Chromium Aluminum Alloy Wire
Furnace chamber size Length X Width X Height (mm) 250X150X100 250X150X100 500X200X180

500X300X200

Table 6    SLXD1600℃ box type

Main parameters

 SLXD-2-12A SLXD-1.5-12A SLXD-2-13A SLXD-2.5-13A
Rated power (kW) 2.5 1.5 2

2.5

Rated voltage (volts)

 220 380/220 380/220 380/220
Temperature control range of the thermostat (degrees) Room temperature -1300 Room temperature -1300 Room temperature -1300

Room temperature -1300

Allowable furnace temperature (degrees)

 1200 1350 1350 1350
temperature measuring element Inconel-NiSi Thermocouples Inconel-NiSi Thermocouples Inconel-NiSi Thermocouples

Inconel-NiSi Thermocouples

heating element

 Iron Chromium Aluminum Alloy Wire Iron Chromium Aluminum Alloy Wire Iron Chromium Aluminum Alloy Wire Iron Chromium Aluminum Alloy Wire
Furnace size Length X Width X Height (mm)

Φ40X600

Φ25X 600

 Φ22X600

Φ25X2X600

Note: Special specifications can be customized according to user needs
