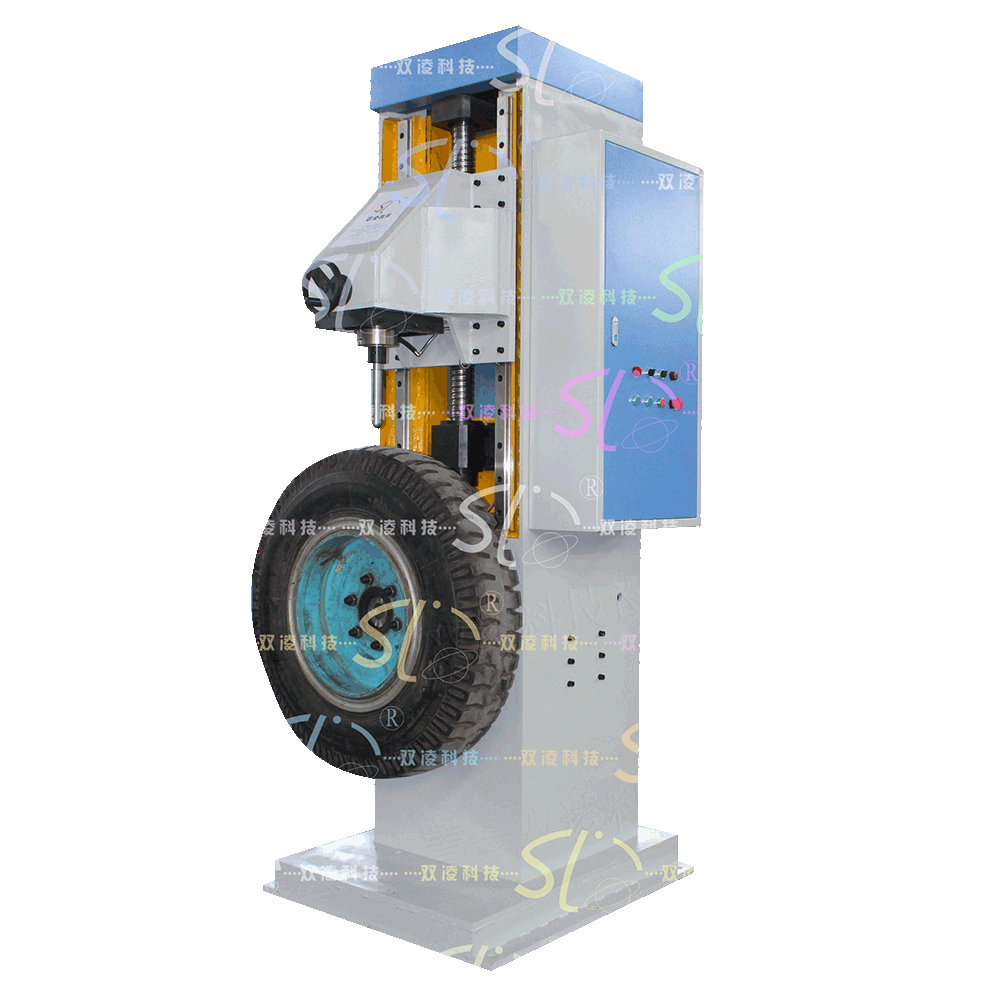

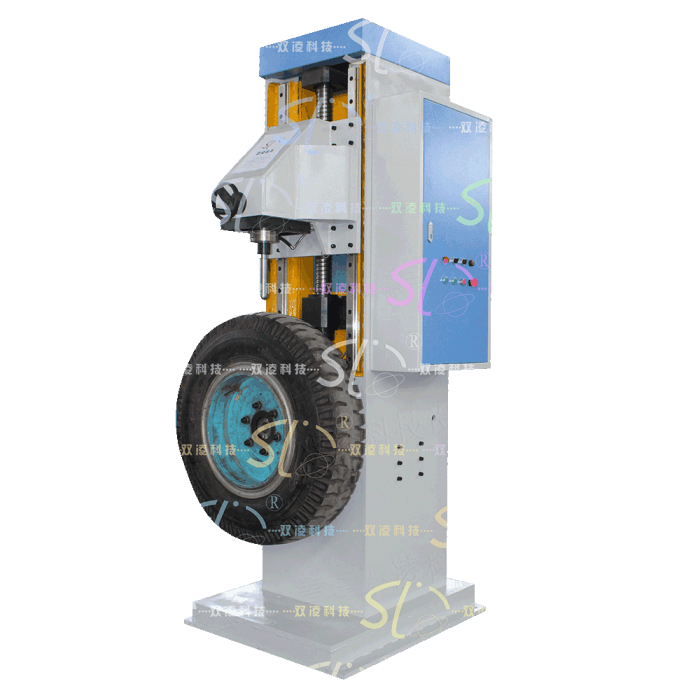

SLZLQ-10T Load Tire Strength Testing Machine

Overview:

According to the GB/T4501-2008 standard, combined with the precision and repeatability requirements of the test equipment, in line with the simple operation, compact equipment, long service life, continuous operation of the transformation principle, SLZLQ-10T loaded tire strength tester servo loading mode, steel skeleton structure, a variety of rims can be based on the specimen by the original structure of the replacement of the spindle position and rims. The electrical control system consists of primary instrumentation, drive distribution components, actuators, computers, PLC, printers, etc. Through the corresponding combination of the above devices, data acquisition and preservation are completed. The whole test electrical to do humanized design. The product complies with GB/T4501 standard 4.2 and 5.3 strength test methods and requirements.



Ingredients:

1. Fuselage: steel skeleton structure.

2. Strength test assembly:

2.1 Loading device: servo motor is used for upward/downward movement, and force sensors and punches are installed on the mobile loading slide bar. Grating encoder for moving distance detection, force sensor for loading force detection, data processing by the acquisition board and computer.

2.2 Tire fixation device: the rims will be loaded with tires inflated, loaded into the rims fixed to the hub flange and bolted, manually rotate the locking device for rotary locking the hub,.

2.3 Braking device: by manually rotating the locking disk to make its wheel circumference and body locking, locking for strength test, loosening the locking disk to adjust the next test position and locking for different positions of the strength test.

3. Force sensor range: 20T

4. Tire strength punch: φ19 one, φ32 one, φ38 one, each of the above three specifications; Material: 5CrMnMo alloy steel tempered, quenched after processing, hardness HRC 56-62.

5. Loading force measurement tooling: 1 set

6. Control and detection system: the whole control system adopts industrial control machine and data acquisition board card, PLC for computer control.

7. Equipment factory with calibration apparatus: 1 only

Technical parameters:

Equipment structure

Vertical Rack Test loading speed 3mm/min-60mm/min±2.5mm/min
Tire Diameter 457-1400 (mm) Punch return speed

400mm/min

Maximum tire section width

<350mm Punch Diameter φ19 one, φ32 one, φ38 one, precision 0.1mm
Loading method Servo motor loading, force sensor monitoring Equipment external dimensions

1700*1530*2660mm

Strength test load

0-100KN. Loading measurement accuracy: ±1%f.S. Gross weight of equipment 2.7 tons.
