VPZ-03C/900 Multi-functional Transmission Belt Length Measuring Machine

Overview.

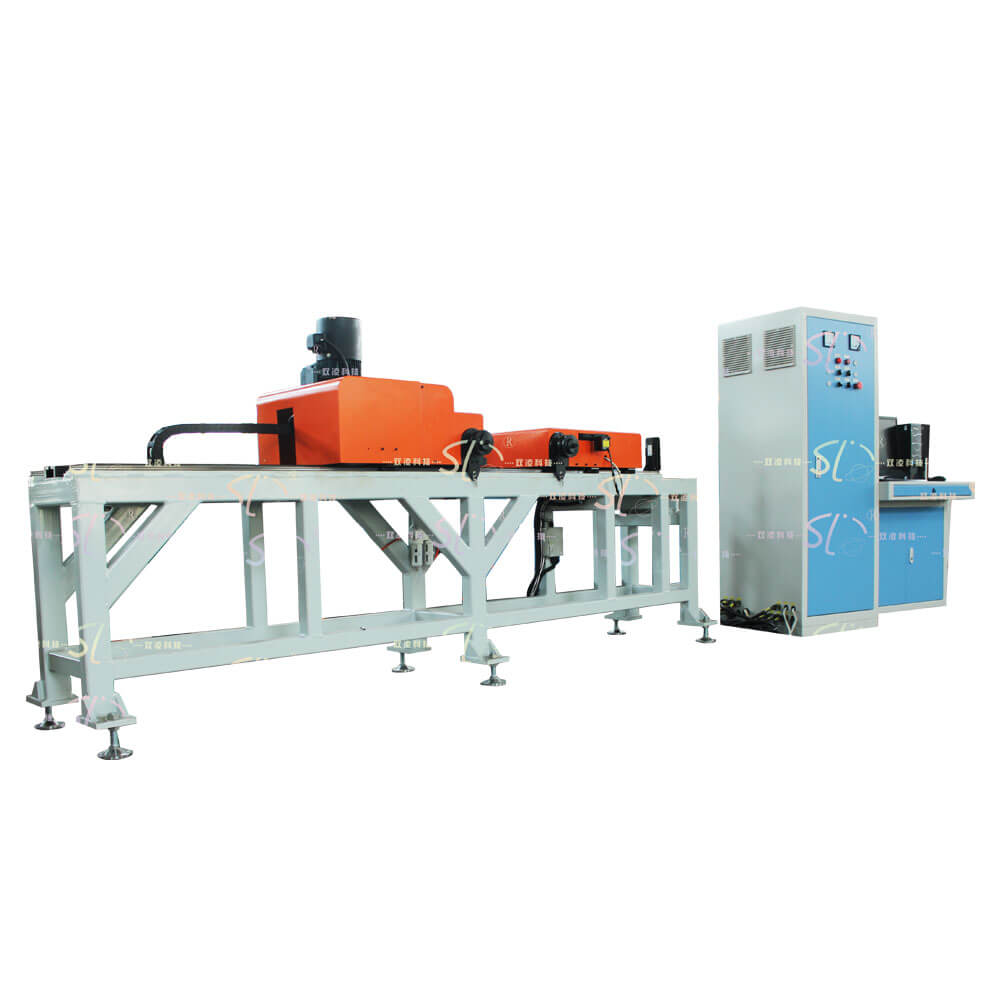

VPZ-03C/900 multifunctional transmission belt length measuring machine is strictly based on GB/T13552-2008 "automotive polygonal belt", GB/T13352-2008 "belt transmission V-belt and its pulleys for the automotive industry Dimensions" standard design, the main performance indicators in line with the standard requirements for the measurement of the use of the relevant provisions of the standard. The machine is easy to operate, high resolution, the main control adopts PLC and computer communication to carry out programmed control and realize man-machine dialogue, the whole equipment is easy to operate, the display is intuitive, and the test data and test reports can be saved and printed.



  • Length measurement method: the magnetic grid displacement sensor is used for determination. According to different specimens corresponding to the standard formula for automatic calculation of the center distance, the effective length of the specimen and the corresponding length of the section line, the amount of change in the center distance, the operator before the test to select the type of sample to be tested, you can automatically calculate the above data.
  • Measuring range of belt length: belt length range:200-1800(mm)
  • Resolution: 0.05mm (retain two digits after the decimal point).
  • Accuracy: 0.1mm.
  • Tensioning force application method: the servo motor is used to apply tensioning force to the specimen, closed-loop control and alarm for overshooting.
  • Applied tension range: 100N-1000N
  • Tension control accuracy: 1%
  • Scope of application: PJ
  • Power supply: AC380V 50HZ.
  • Equipment size: about 2350(L)*650(W)*1260(H)mm
  • Maximum power of the whole machine: 2KW.
  • The dosage bar for belt wheel testing can be equipped separately according to the user's requirements, and the price is accounted for separately.
  • Test test pulley, supplied by the customer.
  • Use of the environment: temperature range: 10 ℃ ~ 35 ℃, humidity range: ≤ 90% non-condensation, altitude: ≤ 2000m
